T-30W
T-30W inclined bed tailstock line rail knife tower crane
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | T-30W | |
| Scope of Work | Maximum turning diameter of bed | mm | Φ440 | |
| Maximum machining diameter | Shaft | mm | Φ260 | |
| Disc outer diameter holder) | mm | Φ360 | ||
| Max. machining length (cutterhead face to jaw face) | mm | 360 | ||
| Bars diameter of passing cylinder | mm | Φ46 | ||
| Feed | X-axis fast movement | Mm/min | 22000 | |
| Fast Z-axis movement | Mm/min | 22000 | ||
| X-axis maximum travel | mm | 180 (over center 20 | ||
| Maximum Z-axis travel | mm | 400 | ||
| X/Z axis repeat positioning accuracy | mm | 0.005 | ||
| Spindle | Main motor power | Kw | 5.5 | |
| Spindle speed | rpm | 50-4000 | ||
| Spindle nose | ASA | A2-5 | ||
| Spindle through hole | mm | Φ56 | ||
| Clamping mode | / | 6 inch chuck | ||
| Tailstock | Maximum stroke of sliding table | mm | 330 | |
| tailstock sleeve | Mohs | 4# | ||
| Telescopic stroke of tailstock sleeve | mm | 140 | ||
| Knife Tower | Knife Tower | / | 80(8T) | |
| Maximum turning diameter of cutter head | mm | Φ440 | ||
| Shank size | mm | 25 x 25 | ||
| Other | Lubrication method | Automatic | 2L | |
| Cooling pump power | W | 370 | ||
| External dimensions of machine tool | mm | 2170 × 1420 × 1635 | ||
| Machine weight | T | 2 | ||

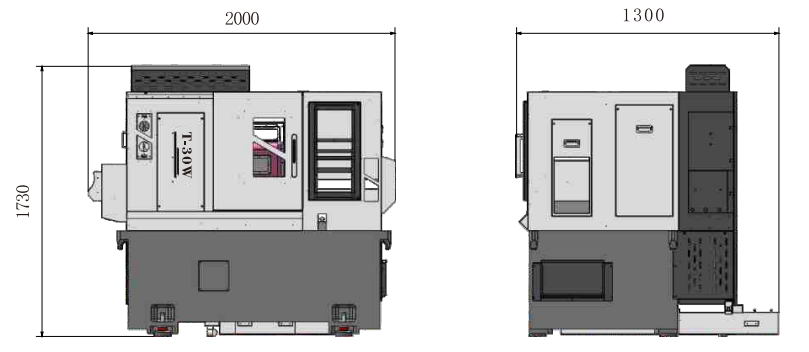

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

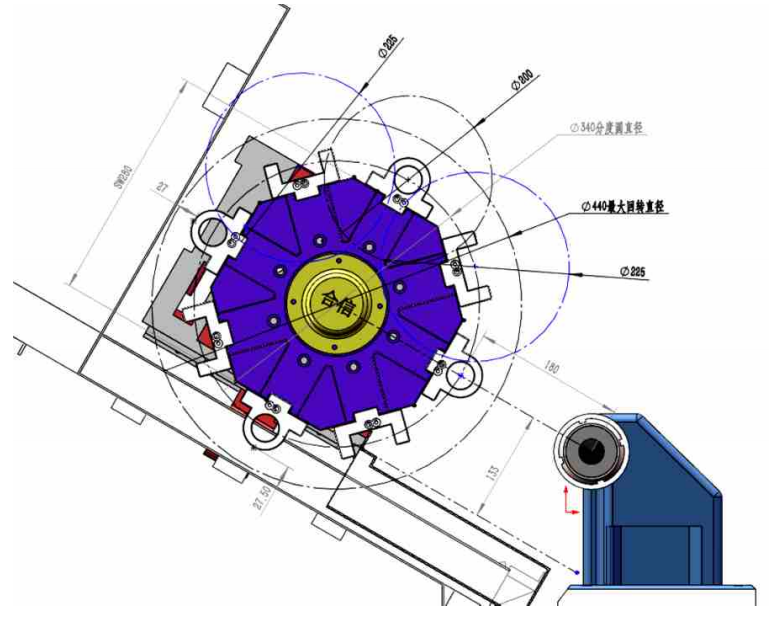

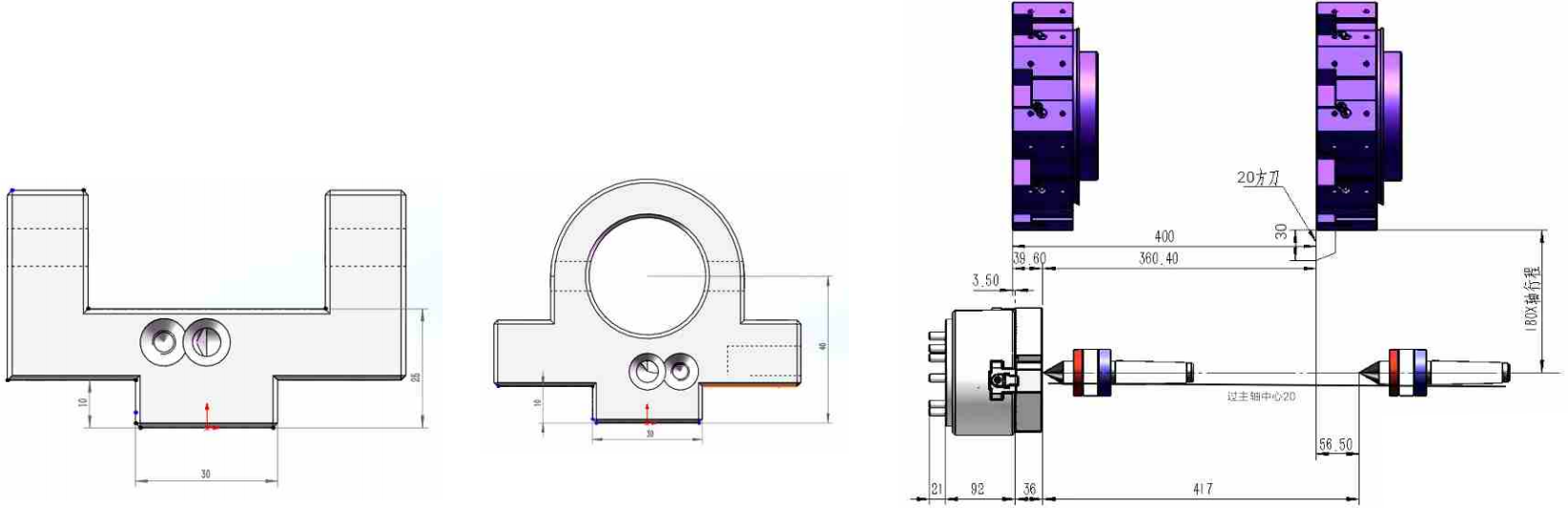

Turret Schematic
