G-350
G-350 inclined bed rail CNC lathe
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
|
Description |
Project |
Unit |
G-350 |
|
Scope of Work |
Maximum turning diameter of the bed |
mm |
Φ420 |
|
Maximum diameter of the bar on the carriage |
mm |
Φ120 |
|
|
Bars diameter of over-spindle |
mm |
Φ36 |
|
|
Feed |
X-axis fast moving speed |
Mm/min |
22000 |
|
Z-axis fast moving speed |
Mm/min |
22000 |
|
|
X-axis maximum travel |
mm |
300 |
|
|
Maximum Z-axis travel |
mm |
310 |
|
| X/Z axis repeat positioning accuracy | mm | 0.005 | |
|
Spindle |
Spindle nose |
ASA |
A2-5 |
|
Main motor |
Kw |
4 |
|
|
Spindle speed |
rpm |
50-3000 |
|
|
Spindle through hole |
mm |
Φ49 |
|
|
Chuck diameter |
|
6 inch (optional) |
|
|
Other |
Bed structure form |
|
High and low rail 30 degree inclined bed |
|
Clamping mode |
|
Pneumatic/Hydraulic |
|
|
Tool holder mode |
|
Row tool holder |
|
|
Lubrication method |
|
automatic lubrication |
|
|
Cooling pump power |
W |
120 |
|
|
Lighting |
V |
220 |
|
|
System |
|
Optional |
|
|
Overall dimensions of machine tool (length×width×height) |
mm |
1791.5 × 1400 × 1660 |
|
|
Machine weight |
T |
1.3 |

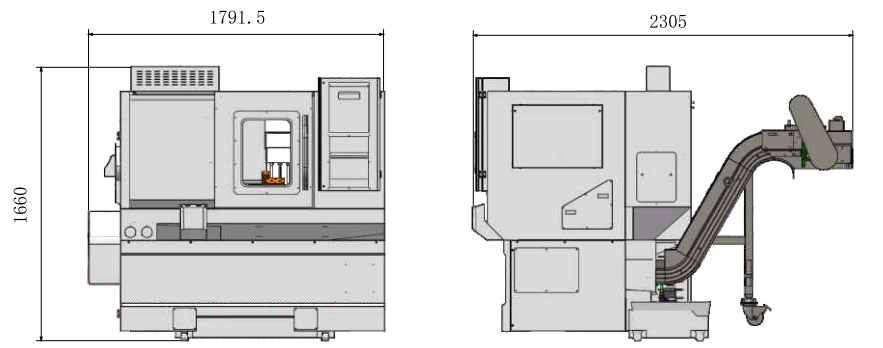

Installation size

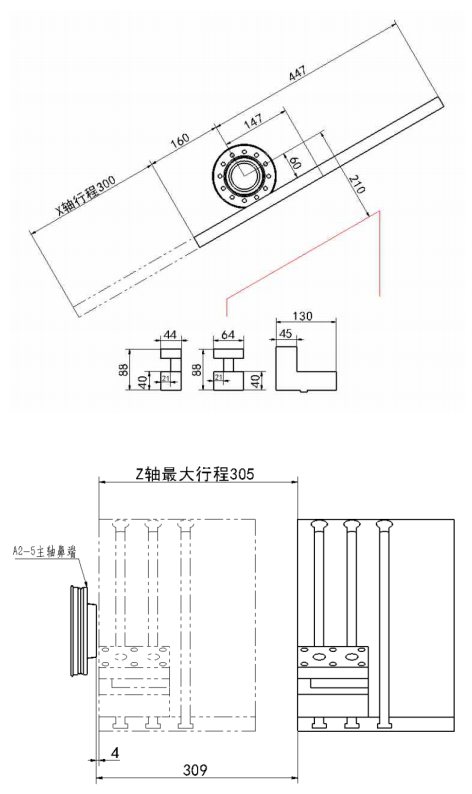

排刀干涉图 Interference diagram of row knife
