H-360A
H-360A precision flat bed rail CNC lathe

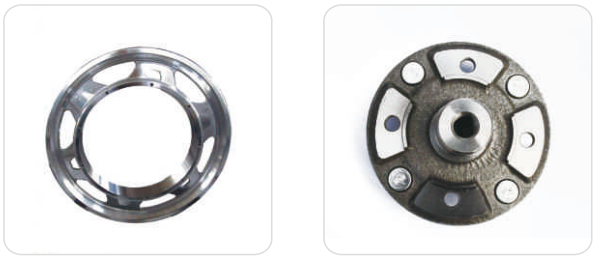

This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | H-360A | H-360AL |
| Scope of Work | Maximum turning diameter of the bed | mm | Φ340 | * |
| Maximum diameter of the bar on the carriage | mm | 52160 | * | |
| Bars diameter of passing cylinder | mm | Φ36 | * | |
| Feed | X-axis fast moving speed | Mm/min | 22000 | * |
| Z-axis fast moving speed | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 300 | * | |
| Maximum Z-axis travel | mm | 340 | 500 | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | |
| Spindle nose | ASA | A2-5 | * | |
| Spindle | Spindle through hole diameter | mm | Φ50 | * |
| Spindle bore taper | 42 degrees | * | ||
| Spindle speed | rpm | 50-3000 | * | |
| Clamping mode | mm | Pneumatic hydraulic optional | * | |
| X-axis pulse equivalent | mm | 0.005 | * | |
| Z-axis pulse equivalent | mm | 0.01 | * | |
| Other | Number of knives | 4-station electric knife holder is optional for row knives) | * | |
| Cube dimensions | mm | 20 x 20 | * | |
| Main motor power | Kw | 4 | * | |
| Overall dimensions of machine tool (length×width×height) | mm | 1910 × 1380 × 1680 | 2050 × 1246 × 1520 | |
| Machine weight | T | 1.5 | 1.7 |

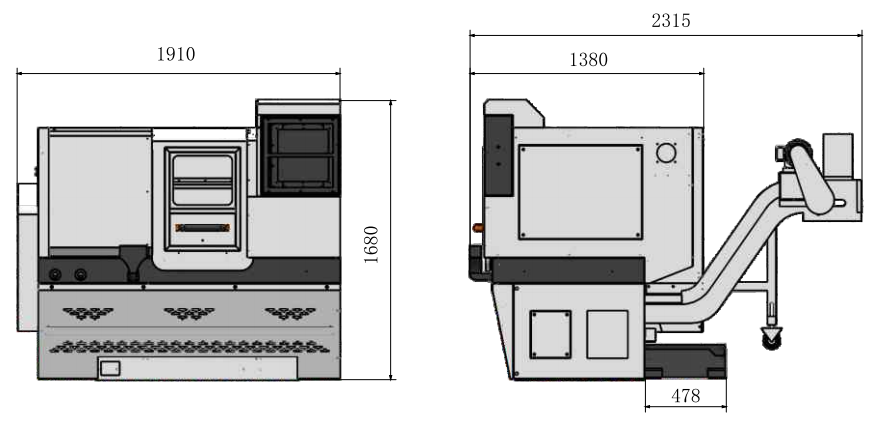

Installation size

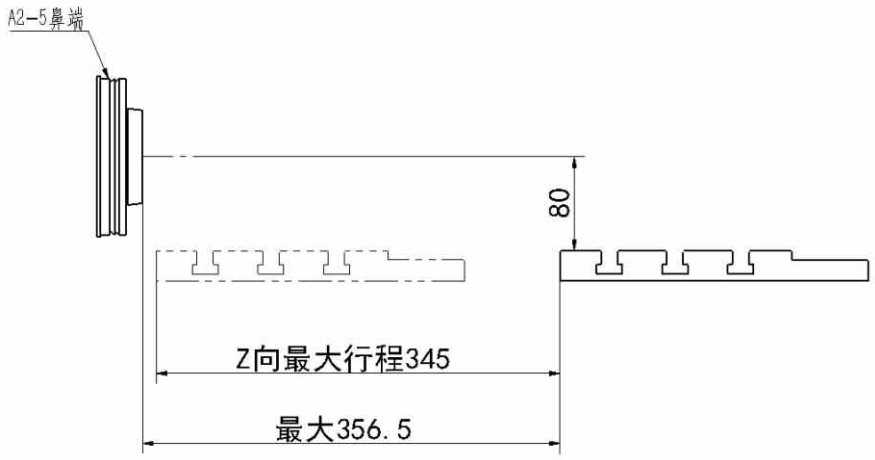

排刀干涉图 Interference diagram of row knife
