H-360W
H-360W precision flat bed tailstock rail CNC lathe
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
|
Description |
Project |
Unit |
H-360W |
|
Scope of Work |
Maximum turning diameter of the bed |
mm |
Φ340 |
|
Maximum diameter of the bar on the carriage |
mm |
52160 |
|
| Bars diameter of passing cylinder | mm | Φ36 | |
|
Feed |
X-axis fast moving speed |
Mm/min |
22000 |
|
Z-axis fast moving speed |
Mm/min |
22000 |
|
|
X-axis maximum travel |
mm |
300 |
|
|
Maximum Z-axis travel |
mm |
340 |
|
|
Tailstock |
Maximum tailstock travel |
mm |
300 |
|
Two top distance |
mm |
350 |
|
|
tailstock sleeve |
Mohs |
4# |
|
|
Spindle |
Spindle through hole diameter |
mm |
Φ40 |
|
Spindle bore taper |
|
42 degrees |
|
|
Spindle speed |
rpm |
50-3000 |
|
|
Other
|
Clamping mode |
mm |
Pneumatic (hydraulic optional) |
|
X-axis pulse equivalent |
mm |
0.005 |
|
|
Z-axis pulse equivalent |
mm |
0.01 |
|
|
Number of knives |
|
Rank knife (optional 4-station electric knife holder) |
|
|
Cube dimensions |
mm |
20 x 20 |
|
|
Main motor power |
Kw |
4.0 |
|
|
Overall dimensions of machine tool (length×width×height) |
mm |
2190 × 1381 × 1522 |
|
|
Machine weight |
T |
1.8 |

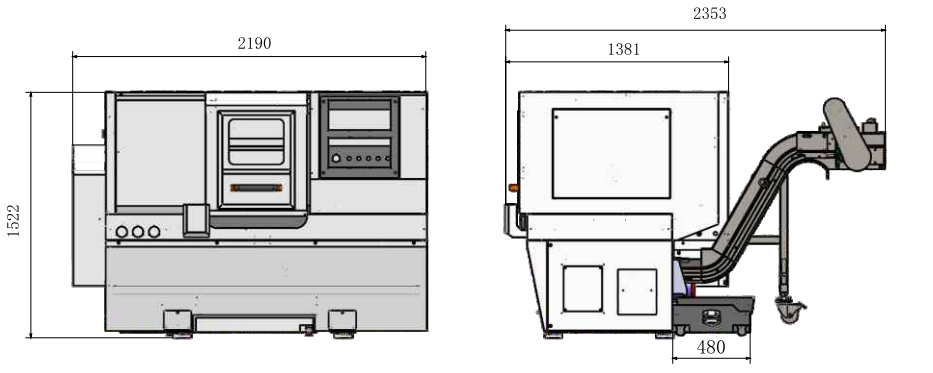

Installation size

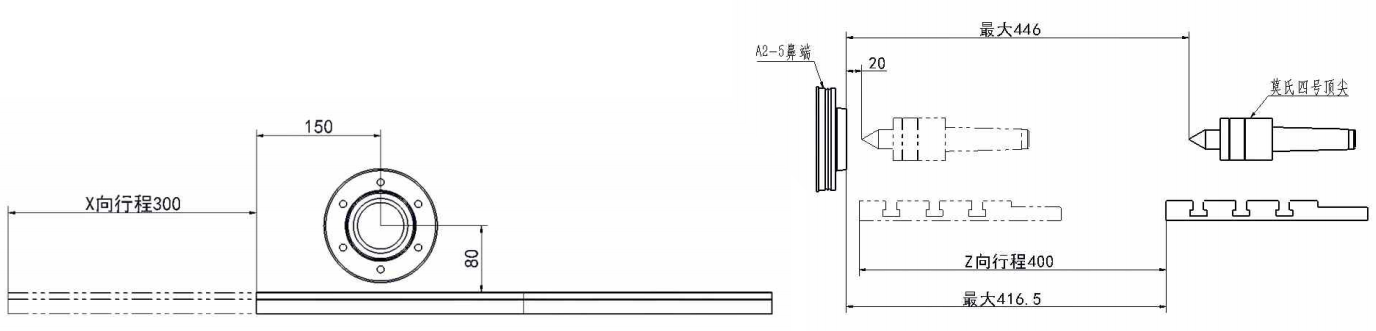

排刀干涉图 Interference diagram of row knife
