TD-52YW
TD-52YW inclined bed tailstock line rail knife tower crane
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | TD-52YW | |
| Scope of Work | Maximum turning diameter of bed | mm | Φ570 | |
| Maximum machining diameter | Shaft | mm | Φ420 | |
| Disc (outer diameter holder) | mm | Φ420 | ||
| Disc (end face holder) | mm | Φ500 | ||
| Max. machining length (cutterhead face to jaw face) | mm | 440 | ||
| Bars diameter of passing cylinder | mm | Φ52 | ||
| 0 degree power head maximum punch product diameter | mm | Φ300 (within 100 of milling cutter length) | ||
| Feed | X-axis fast movement | Mm/min | 22000 | |
| Fast Z-axis movement | Mm/min | 22000 | ||
| Y axis fast movement | Mm/min | 18000 | ||
| X-axis maximum travel | mm | 288 | ||
| Maximum Z-axis travel | mm | 500 | ||
| Y-axis maximum travel | mm | 100(±50) | ||
| X/Z/Y axis repeat positioning accuracy | mm | 0.005 | ||
| Spindle | Main motor power | Kw | 11 | |
| Spindle speed | rpm | 50-3500 | ||
| Spindle nose | ASA | A2-6 | ||
| Clamping mode | / | 8 inch chuck | ||
| Spindle through hole | mm | Φ66 | ||
| Tailstock | Maximum tailstock travel | mm | 400 | |
| tailstock sleeve | Mohs | 5# | ||
| Telescopic stroke of tailstock sleeve | mm | 140 | ||
| Knife Tower | Lifting power turret | BMT55 | 100(12T) | |
| Maximum turning diameter of cutter head | mm | 680 | ||
| Shank size | mm | 25 x 25 | ||
| Other | Lubrication method | Automatic | 2L | |
| Cooling pump power | W | 550 | ||
| External dimensions of machine tool | mm | 2410 × 1650 × 2200 | ||
| Machine weight | T | 4 | ||

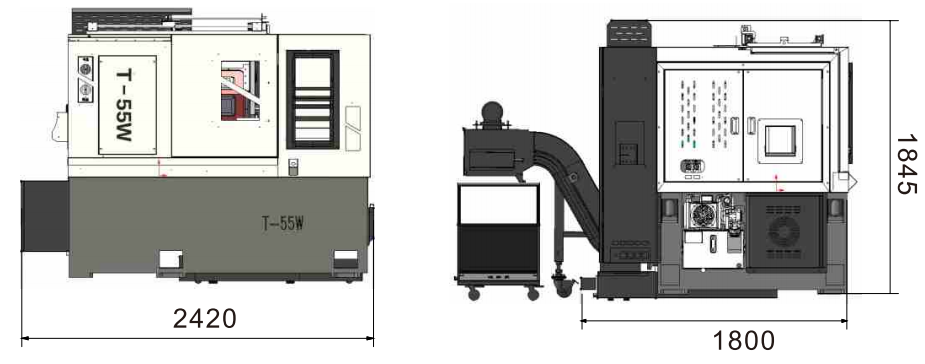

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

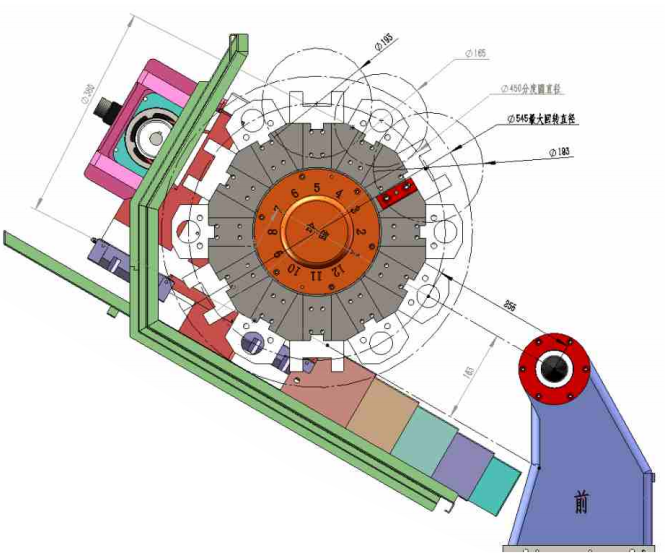

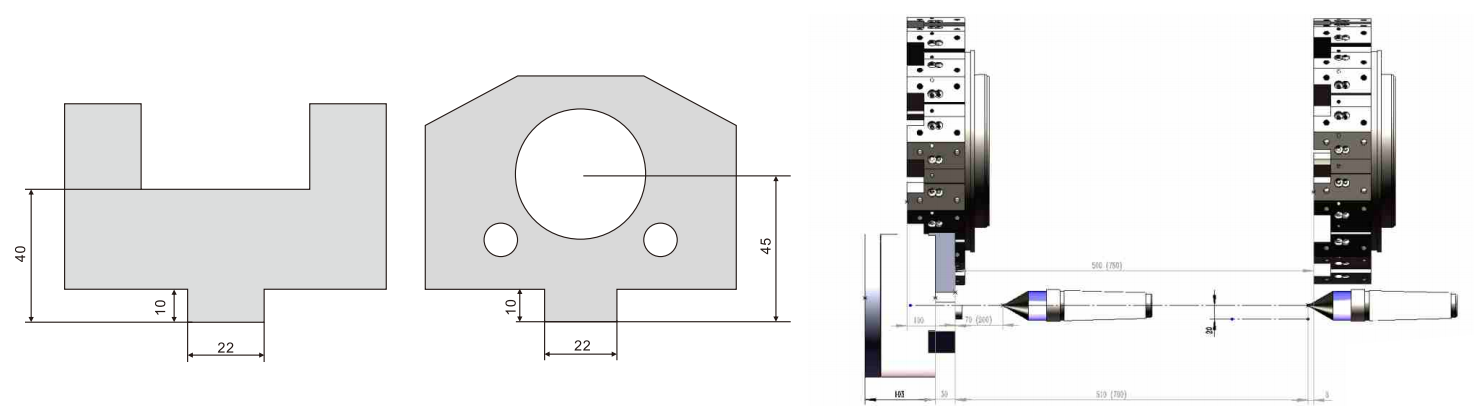

Turret Schematic
