CX-600
CX-600 turn-milling compound CNC machine tool
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
|
Description |
Project |
Unit |
CX-600 |
|
Scope of Work |
Max turning diameter |
mm |
Φ430 |
|
Max. radial milling diameter |
mm |
Φ380 |
|
|
Maximum milling length |
mm |
To claw face 600 |
|
|
Maximum turning length |
mm |
To claw face 550 |
|
| Bars diameter of passing cylinder | mm | Φ52 | |
|
Feed |
X-axis maximum travel |
mm |
240 |
|
Y-axis maximum travel |
mm |
±55 |
|
|
Maximum Z-axis travel |
mm |
600 |
|
|
X-axis/Y-axis/Z-axis fast moving speed |
Mm/min |
20/16/20 |
|
|
X/Z/Y repeat positioning accuracy |
mm |
0.005 |
|
|
Spindle |
Spindle nose |
ASA |
A2-6 |
|
hydraulic chuck |
|
8 inch |
|
|
Spindle speed |
rpm |
4000 |
|
|
Spindle power |
Kw |
15 |
|
|
Maximum spindle torque |
Nm |
120 |
|
| Spindle through hole |
deg |
Φ66 | |
|
Tailstock |
Maximum travel |
mm |
550 |
|
Two top distance |
mm |
620 |
|
|
tailstock sleeve |
Mohs |
5# |
|
|
Knife Tower |
Tower station |
N |
12 |
|
Power knife holder |
|
BMT55 |
|
|
Dimension of cutter bar |
mm |
□ 25 |
|
|
Boring bar size |
mm |
Φ40 |
|
|
Power spindle speed |
rpm |
3000/4500 |
|
|
Power output motor |
Kw |
3-5 |
|
|
Other |
Spindle cooling mode |
|
Oil cooling |
|
Cooling pump power |
Kw |
0.75 |
|
|
Overall dimensions of machine tool (length×width×height) |
mm |
3047 × 1858 × 1923.5 |
|
|
Machine weight |
T |
5.0 |

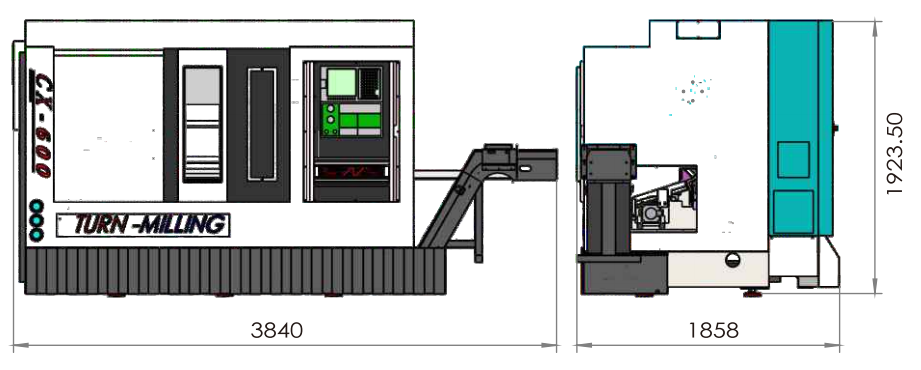

Installation size

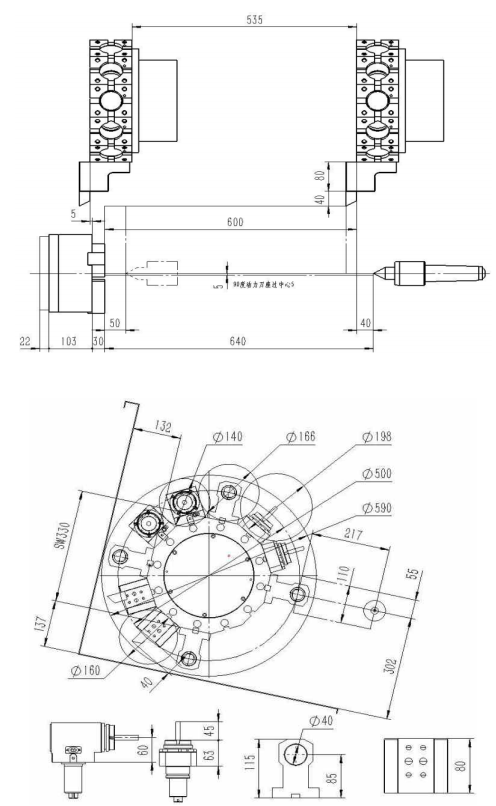

Cutter head Interferogram Cutter head
