VTD5246

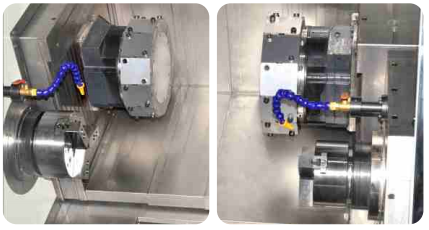

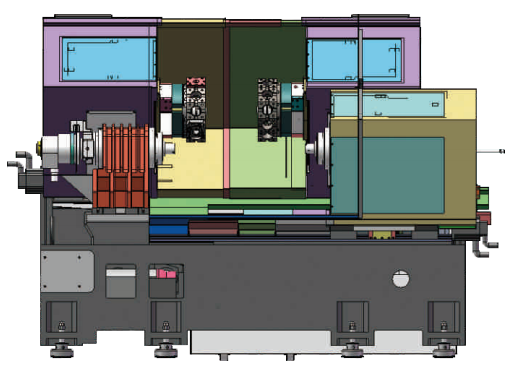

VTD5246 double spindle double turret CNC machine tool
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | VTD5246 | countershaft |
| Scope of Work | Maximum machining diameter | mm | Φ210 | |
| Maximum processing length | mm | 200 | ||
| Bars diameter of passing cylinder | mm | Φ46 | / | |
| Φ52 | / | |||
| Feed | XI/X2 Maximum stroke | mm | 210 | |
| Z1/Z2 maximum stroke | mm | 240 | ||
| B Maximum stroke | mm | / | 500 | |
| X1/X2/Z1/Z2/B Fast | Mm/min | 22/22/22/22/20 | ||
| X1/X2/Z1/Z2/B Repeatability | mm | 0.005 | ||
| X1/X2/Z1/Z2/B ball screw | / | 3210/3210/4010/4010 | ||
| X1/X2/Z1/Z2/B linear guide | / | 45/45/45/45/45 | ||
| Spindle | Main spindle nose | ASA | A2-5 (optional motorized spindle) | / |
| A2-6 optional electric spindle) | / | |||
| Sub-spindle nose | ASA | / | A2-5 (optional motorized spindle) | |
| Main spindle power | Kw | 11 | / | |
| auxiliary spindle power | Kw | / | 7.5 optional 11Kw | |
| Two spindle speed | Rmp | 50-4000 (servo spindle) | * | |
| 0-4000 (servo spindle) | * | |||
| Main spindle through hole | mm | Φ56 | / | |
| Φ66 | / | |||
| Secondary spindle through hole | mm | / | Φ56 | |
| Knife Tower | Tower station | / | 12T | |
| Power knife holder | / | BMT55 | ||
| Dimension of cutter bar | mm | □ 25 | ||
| Knife size | mm | Φ40 | ||
| Speed of power motor | Rmp | 3000/4500 | ||
| Power motor power | Kw | 5 March | ||
| Other | High pressure pump power | W | 750 | |

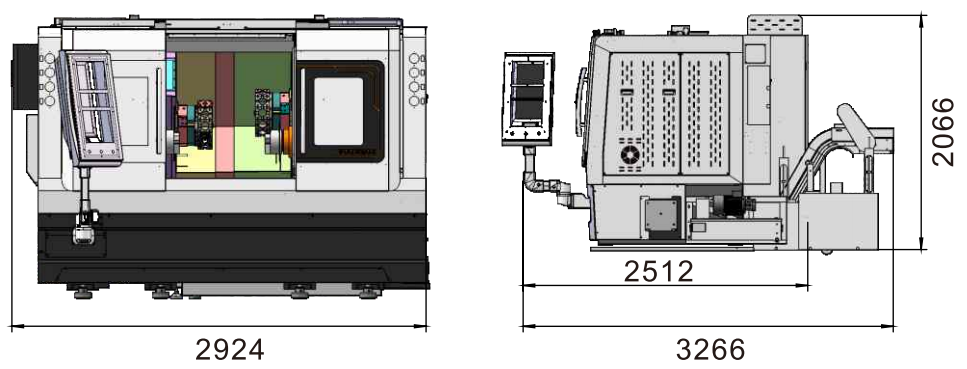

| Machine Size | mm | 2924 × 2512 × 2066 | ||
| Machine weight | T | 6 | ||

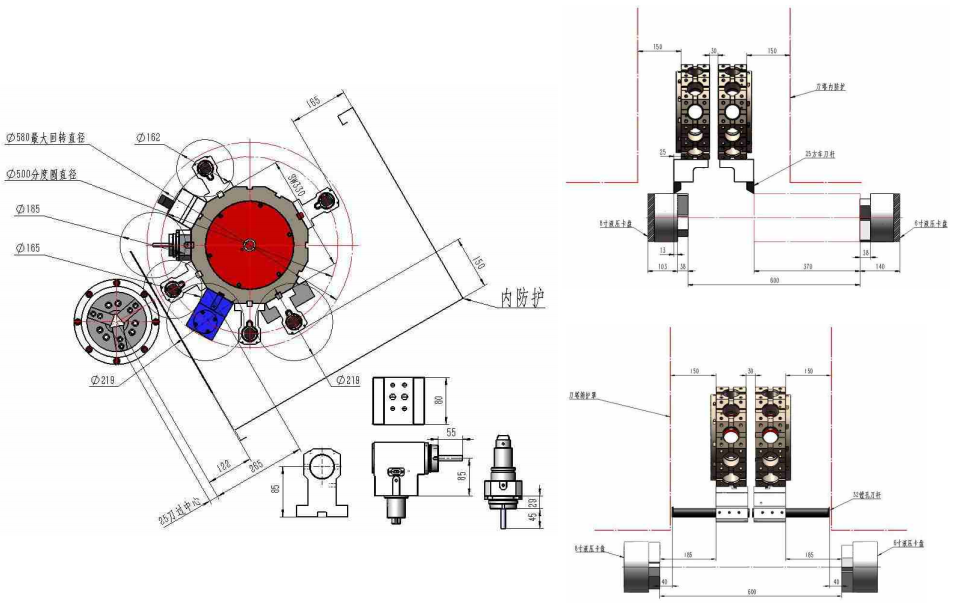

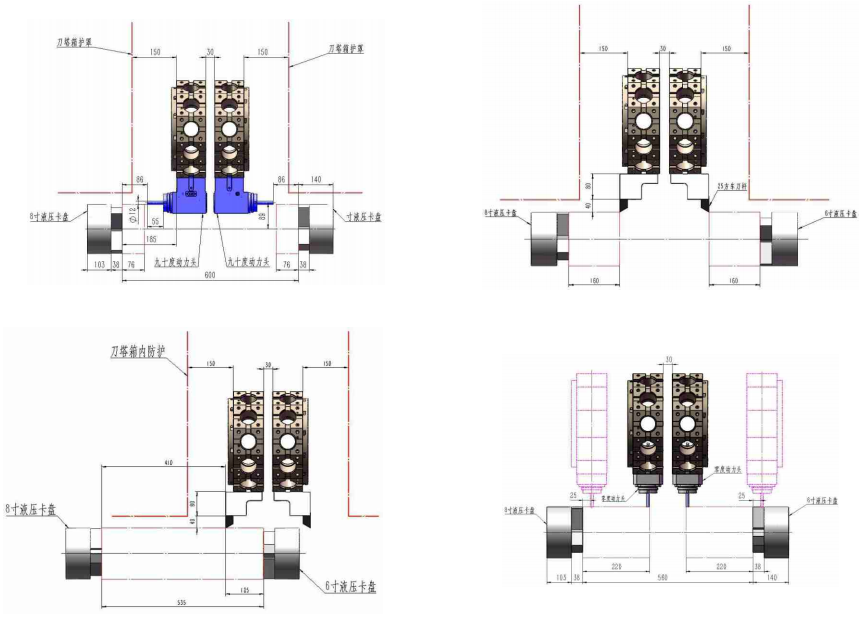

Installation size
