T-60W
T-60W inclined bed tailstock line rail knife tower crane
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | T-60W | T-60W-L (extended) |
| Scope of Work | Maximum turning diameter of bed | mm | Φ600 | * |
| Maximum machining diameter | mm | Φ600 | * | |
| Max. machining length (cutterhead face to jaw face) | mm | 560 (shaft) | 1000 (shaft) | |
| Bars diameter of passing cylinder | mm | Φ75 | * | |
| Feed | X-axis fast movement | Mm/min | 22000 | * |
| Fast Z-axis movement | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 340 (over center 20) | * | |
| Maximum Z-axis travel | mm | 757 | 1227 | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | |
| Spindle | Main motor power | Kw | 15 | * |
| Spindle speed | rpm | 50-3000 | * | |
| Spindle nose | ASA | A2-8 | * | |
| Spindle through hole | mm | Φ92 | * | |
| Clamping mode | / | Hydraulic 10 inch chuck | * | |
| Tailstock | Maximum tailstock travel | mm | 480 | 950 |
| tailstock sleeve | Mohs | 6# | * | |
| Telescopic stroke of tailstock sleeve | mm | 140 | * | |
| Other | Knife Tower | / | 100(8T) | * |
| Maximum turning diameter of cutter head | mm | Φ570 | * | |
| Shank size | mm | 25 x 25 | * | |
| Lubrication method | Automatic | 2L | * | |
| Cooling pump power | W | 550 | * | |
| External dimensions of machine tool | mm | 2810 × 1800 × 2100 | 3280 × 1800 × 2100 | |
| Machine weight | T | 5.3 | 6.5 |

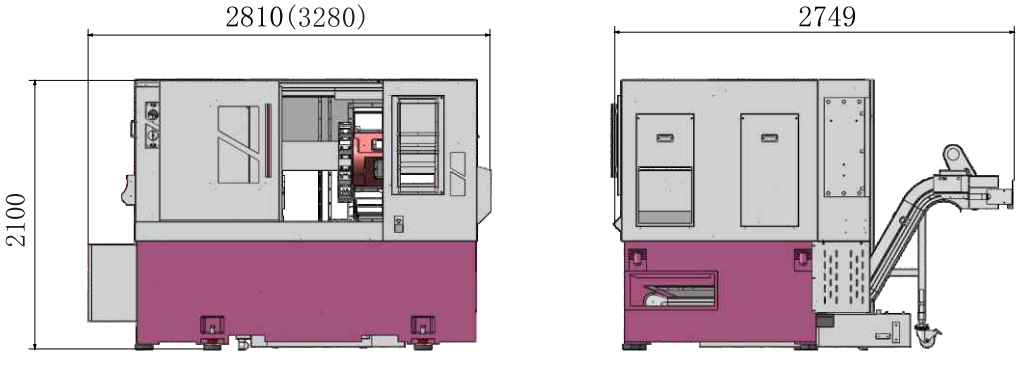

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

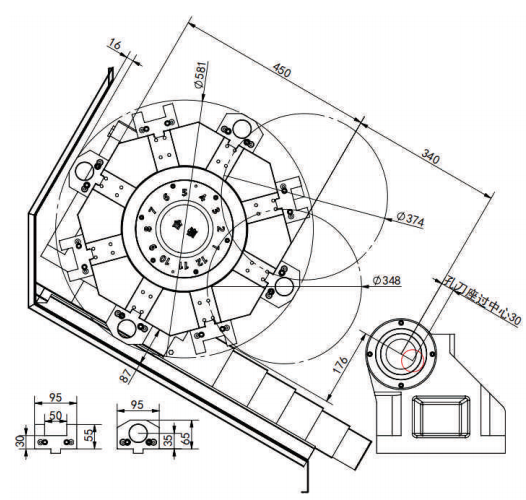

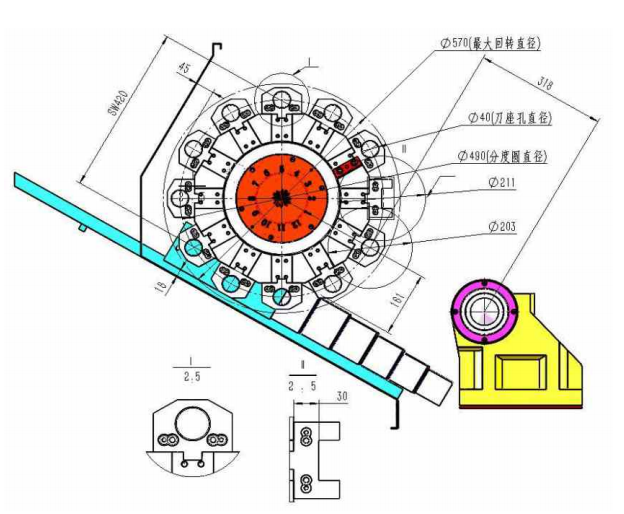

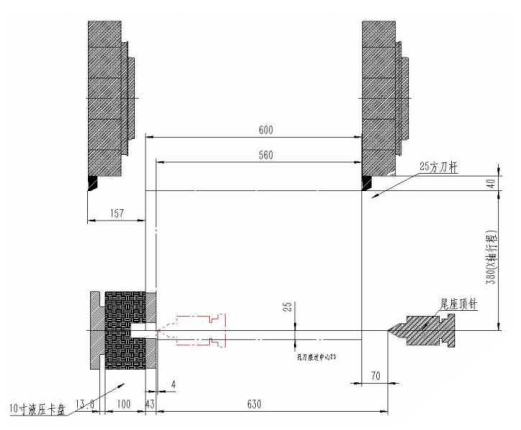

排刀干涉图 Interference diagram of row knife
