CXS-46
CXS-46 double-spindle single-tool tower CNC machine tool
This product is suitable for shell, disc, shaft products machining
Classification:
Key words:
Technical parameters
Machine tool specifications
|
Description |
Project |
Unit |
CXS-46 |
|
Scope of Work |
Spindle maximum whirl diameter |
mm |
Φ500 |
|
Max. swing diameter of countershaft |
mm |
Φ280 |
|
|
Maximum spacing between two spindles |
mm |
390 |
|
|
Bars diameter of over-spindle |
mm |
Φ46 |
|
|
Feed |
Maximum travel of countershaft |
mm |
410 |
|
X-axis maximum travel |
mm |
170 |
|
|
Y-axis maximum travel |
mm |
80±40 |
|
|
Maximum Z-axis travel |
mm |
380 |
|
|
X/Y/Z Move Rate |
Mm/min |
22000/12000/22000 |
|
|
X/Y/Z repeat positioning accuracy |
mm |
0.005 |
|
|
Spindle |
Spindle nose |
ASA |
A2-5 |
|
servo synchronous electric spindle |
kw |
11 |
|
|
Spindle speed |
rpm |
0-4500 |
|
|
Spindle through hole |
mm |
Φ50 |
|
|
Other |
Clamping mode |
/ |
Hydraulic collet |
|
Tool holder |
BMT45 |
12T |
|
|
Machine Size (L×W×H |
mm |
2450 × 1719 × 1720 |
|
|
Machine weight |
T |
3 |

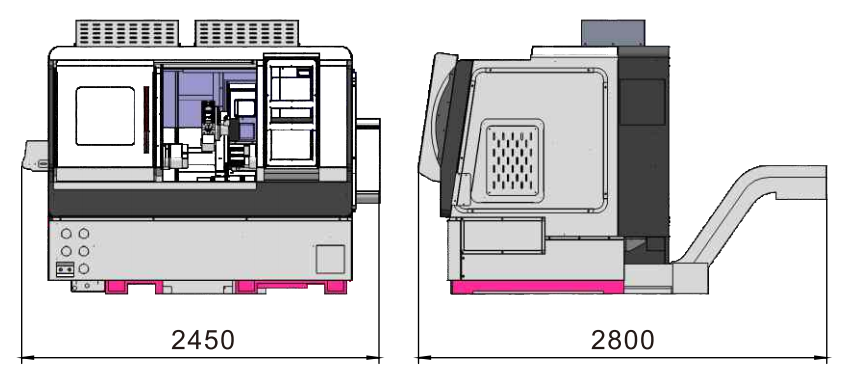

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

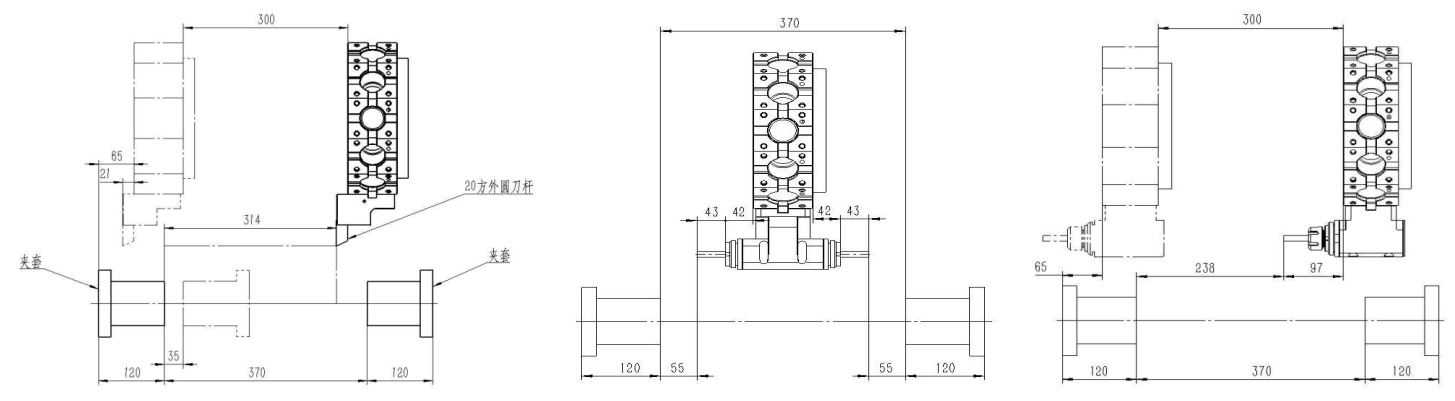

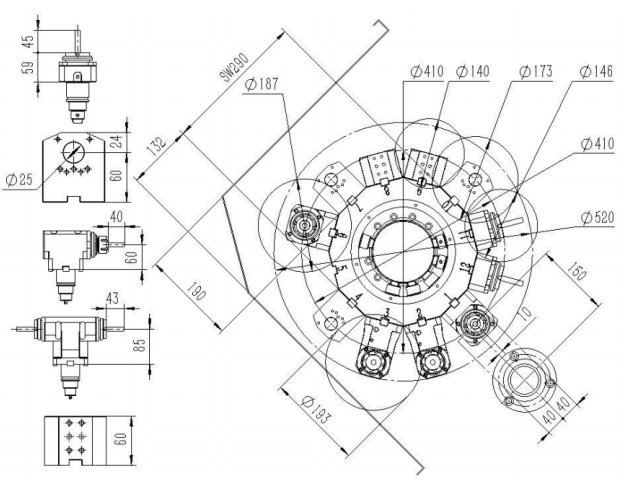

Cutter head Interferogram Cutter head
