DLC-220
DLC-220 inverted CNC machine tools (automatic grab type)
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
|
Description |
Project |
Unit |
DLC-220 |
|
Scope of Work |
Maximum gripping diameter |
mm |
Φ220 |
|
X-direction effective travel |
mm |
700 |
|
|
Feed |
X-axis fast moving speed |
Mm/min |
22000 |
|
Z-axis fast moving speed |
Mm/min |
20000 |
|
|
X-axis maximum travel |
mm |
720 |
|
|
Maximum Z-axis travel |
mm |
300 |
|
|
Spindle |
Chuck diameter |
mm |
6 inch (or collet) |
|
Spindle nose |
ASA |
A2-5 |
|
|
Electric spindle |
Kw |
11 (optional 18.5) |
|
|
Spindle speed |
rpm |
4500 |
|
|
Spindle through hole |
mm |
Φ50 |
|
| X/Z repeat positioning accuracy | mm | 0.005 | |
|
Tray |
Overall dimension |
mm |
1900 × 500 |
|
Moving speed |
Mm/min |
20000 |
|
|
Discharge height |
mm |
150 (including tray) |
|
|
Swing Circumference |
mm |
4000 |
|
|
Other |
Bed structure form |
/ |
90 degree vertical bed |
|
Chip removal method |
/ |
Chip removal machine |
|
|
Chip removal power |
Kw |
0.25 |
|
|
Clamping mode |
/ |
Hydraulic |
|
|
Tool holder mode |
80(8T) |
servo turret |
|
|
System |
/ |
Optional |
|
|
Overall dimensions of machine tool (length×width×height) |
mm |
2096 × 2272 × 2307 |
|
|
Machine weight |
T |
5.0 |

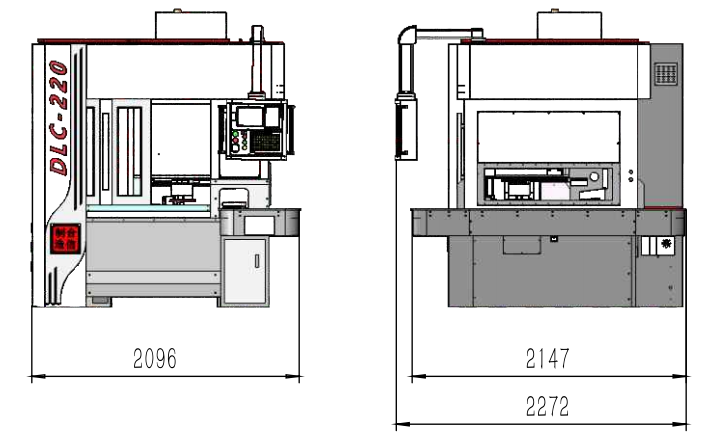

Installation size

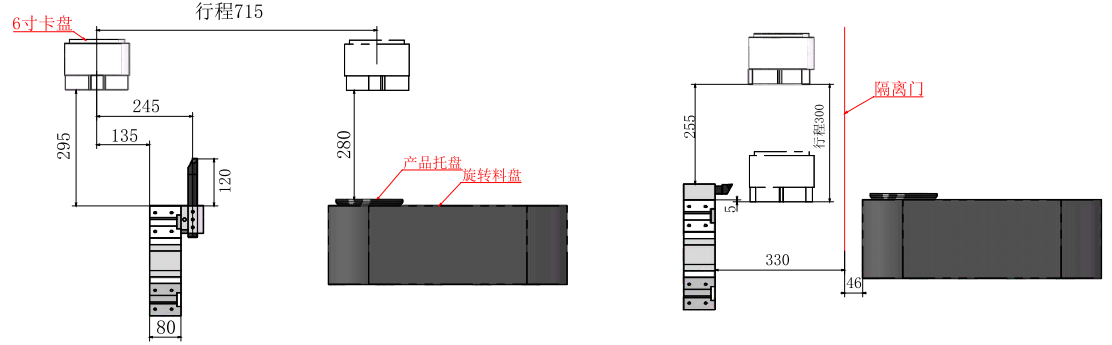

Cutter head Interferogram Cutter head
