TS-4646
TS-4646 double spindle docking CNC machine tool
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | TS-4646 | countershaft |
| Working atmosphere | Maximum turning diameter of the bed | mm | 32240 | * |
| Maximum diameter of the bar on the carriage | mm | Φ180 | * | |
| X-axis effective machining length | mm | 350 | * | |
| Effective machining length of Z-axis | mm | 250 | * | |
| Double spindle butt maximum product diameter | mm | Φ170 | * | |
| Bars diameter of passing cylinder | mm | Φ36 | * | |
| Feed | X-axis fast moving speed | Mm/min | 22000 | * |
| Z-axis fast moving speed | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 435 | * | |
| Maximum Z-axis travel | mm | 420 | * | |
| Spindle | collet | Rear pull | * | |
| (Optional front push collet) 6 inch chuck) | * | |||
| Spindle nose | ASA | A2-5 | * | |
| servo synchronous electric spindle | Kw | 7.5 | * | |
| Spindle speed | rpm | 0-4500 | * | |
| Spindle through hole | mm | Φ50 | * | |
| Other | X/Z repeat positioning accuracy | mm | 0.005 | * |
| Bed structure form | 90 degree vertical bed | * | ||
| Clamping mode | Hydraulic | * | ||
| Tool holder mode | Row tool holder | * | ||
| Lubrication method | automatic lubrication | * | ||
| Cooling pump power | W | 370 | * | |
| Lighting | V | 220 | * | |
| Overall dimensions of machine tool L×W×H) | mm | 2800 × 1906 × 1533 | ||
| Machine weight | T | 4.8 | ||

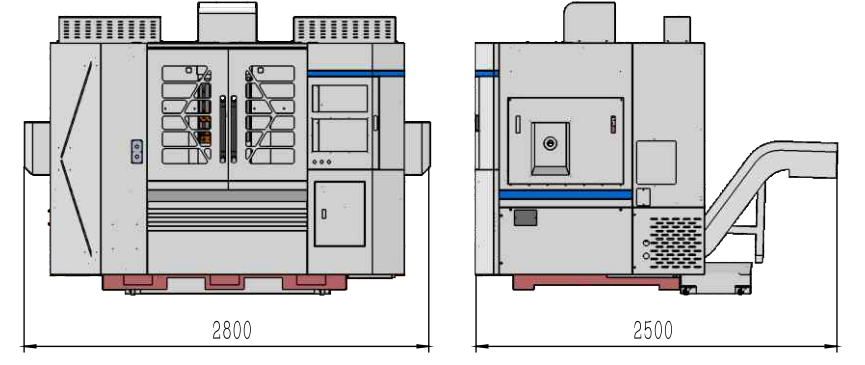

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

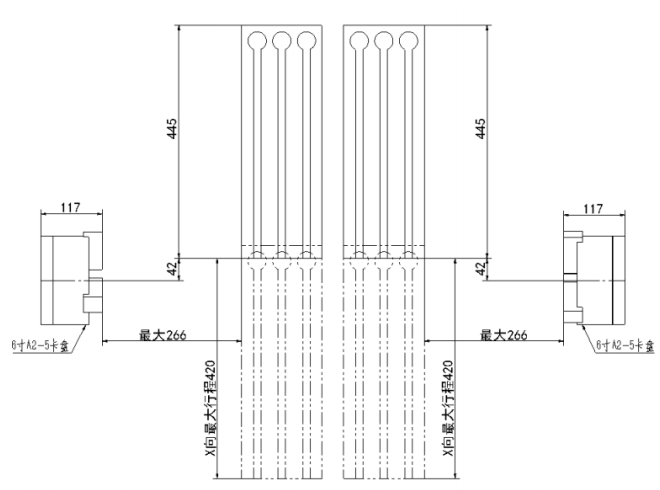

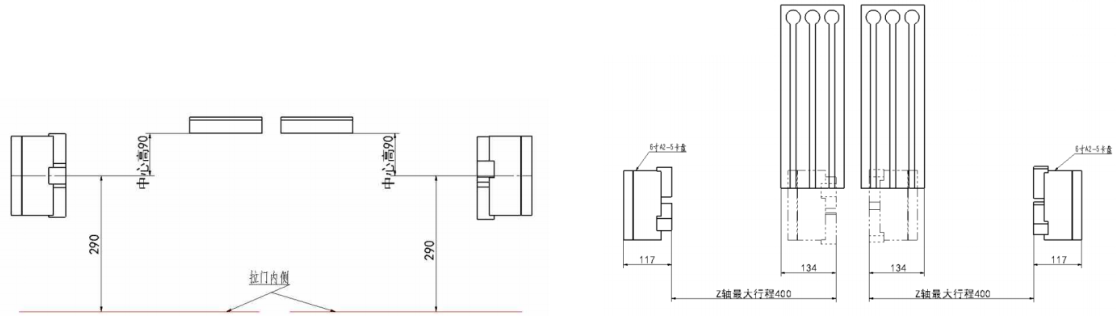

排刀干涉图 Interference diagram of row knife
