TS-30
TS-30 double spindle docking CNC machine tool
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | TS-30 | countershaft |
| Scope of Work | Maximum turning diameter of the bed | mm | Φ260 | 200 |
| Maximum diameter of the bar on the carriage | mm | Φ130 | * | |
| X-axis effective machining length | mm | 350 | 300 | |
| Effective machining length of Z-axis | mm | 200 | 160 | |
| Double spindle butt maximum product diameter | mm | Φ120 | * | |
| Bars diameter of passing cylinder | mm | Φ36 | / | |
| Feed | X-axis fast moving speed | Mm/min | 22000 | * |
| Z-axis fast moving speed | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 350 | 470 | |
| Maximum Z-axis travel | mm | 240 | 230 | |
| Spindle | Collet diameter | Rear pull (optional front push collet) | ||
| Spindle nose | ASA | A2-5 | * | |
| Synchronous electric spindle | Kw | 11 | * | |
| Spindle speed | rpm | 0-4500 | * | |
| Spindle through hole | mm | Φ50 | * | |
| X/Z repeat positioning accuracy | mm | 0.005 | * | |
| Other | Bed structure form | 90 degree vertical bed | * | |
| Clamping mode | Hydraulic | * | ||
| Tool holder mode | Row tool holder | * | ||
| Lubrication method | automatic lubrication | * | ||
| Cooling pump power | W | 370 | * | |
| Lighting | V | 220 | * | |
| Overall dimensions of machine tool L×W×H) | mm | 2609 × 1988 × 2168 | ||
| Machine weight | T | 3.5 | ||

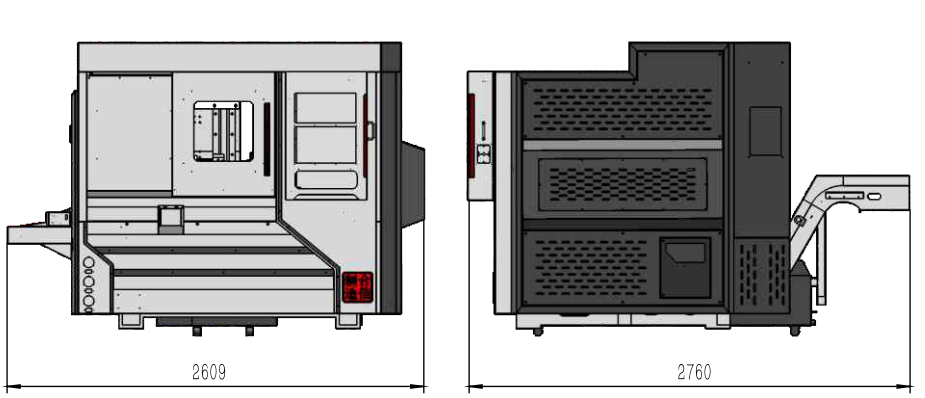

Installation size

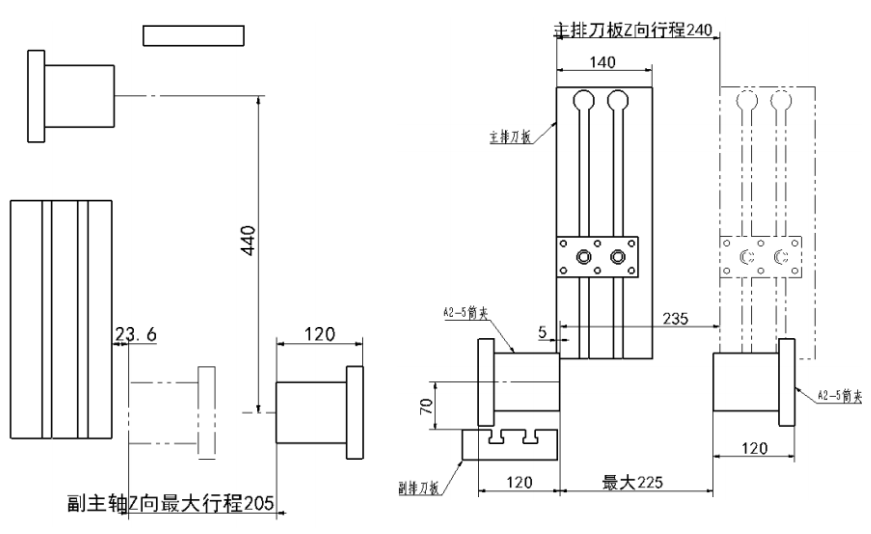

排刀干涉图 Interference diagram of row knife
