T-40W
T-40W inclined bed tailstock line rail knife tower crane
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | TD-40W | T-40W |
| Scope of Work | Maximum turning diameter of bed | mm | Φ500 | * |
| Maximum machining diameter | mm | Φ340 (disc type) Φ300 (shaft type) | * | |
| Max. Machining Length Shaft (Cutter Face to Claw Face) | mm | 430 | * | |
| Bars diameter of passing cylinder | mm | Φ46 | * | |
| Feed | X-axis fast movement | Mm/min | 22000 | * |
| Fast Z-axis movement | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 220 (over center 25) | * | |
| Maximum Z-axis travel | mm | 545 | * | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | |
| Spindle | Main motor power | Kw | 5.5 | * |
| Spindle speed | rpm | 50-4000 | * | |
| Spindle nose | ASA | A2-5 | * | |
| Spindle through hole | mm | Φ56 | * | |
| Clamping mode | / | Hydraulic 6 inch chuck | * | |
| Tailstock | Maximum tailstock travel | mm | 410 | * |
| tailstock sleeve | Mohs | 4# | * | |
| Telescopic stroke of tailstock sleeve | mm | 140 | * | |
| Other | Knife Tower | / | 12T power turret | 8 T servo turret |
| Shank size | mm | 25 x 25 | * | |
| Lubrication method | Automatic | 2L | * | |
| Cooling pump power | W | 370 | * | |
| External dimensions of machine tool | mm | 2130 × 1485 × 1875 | * | |
| Machine weight | T | 3 | * |

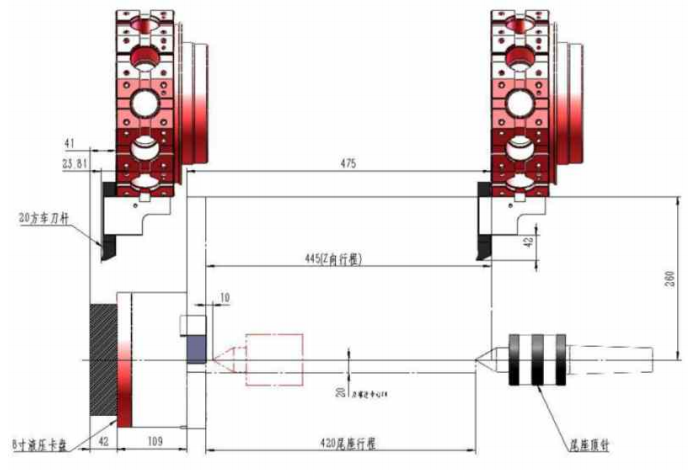

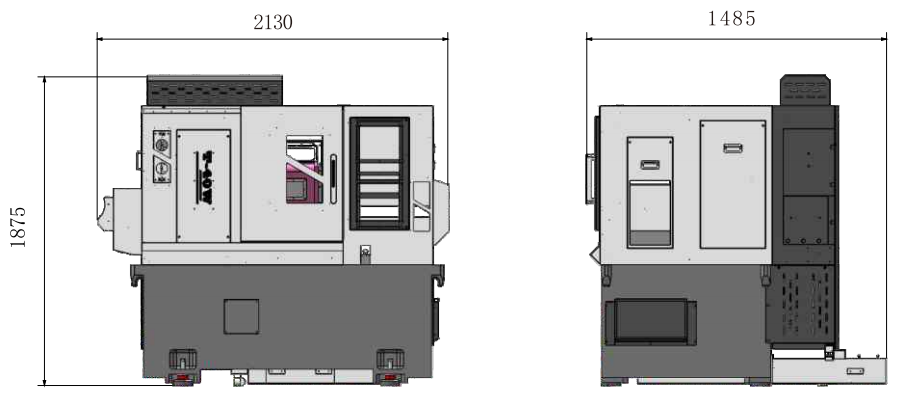

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

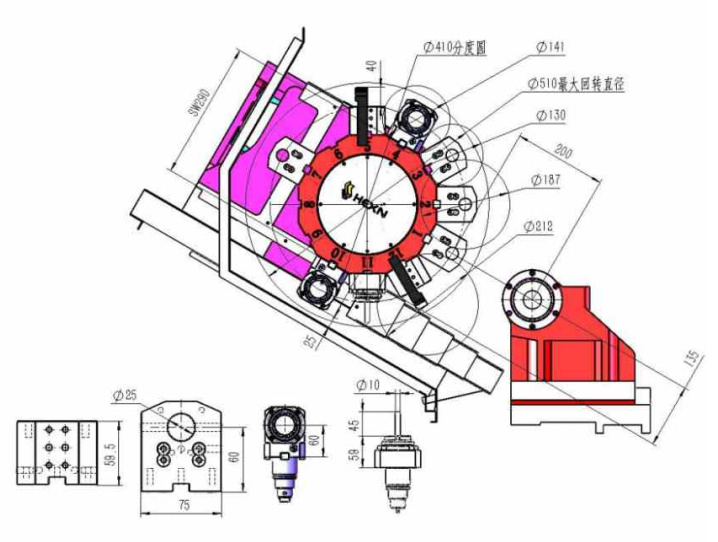

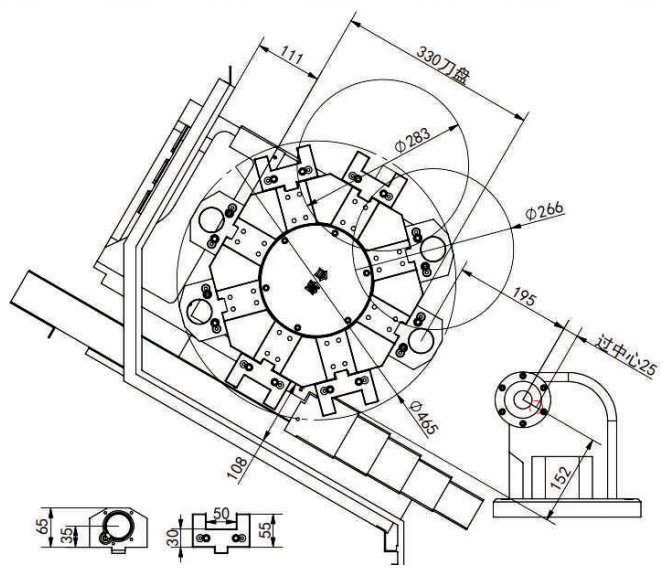

排刀干涉图 Interference diagram of row knife
