T-50W
T-50W inclined bed tailstock line rail knife tower crane
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | T-50W | lengthen 750 | lengthen 1000 |
| Scope of Work | Maximum turning diameter of bed | mm | Φ500 | * | * |
| Maximum machining diameter | mm | Φ300 (shaft) | * | * | |
| Φ480 (disc type) | * | * | |||
| Max. machining length (cutterhead face to jaw face) | mm | 500 | 750 | 1000 | |
| Feed | Bars diameter of passing cylinder | mm | Φ52 | * | * |
| X-axis fast movement | Mm/min | 22000 | * | * | |
| Fast Z-axis movement | Mm/min | 22000 | * | * | |
| X-axis maximum travel | mm | 245 (over center 20) | * | * | |
| Maximum Z-axis travel | mm | 580 | 830 | 1080 | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | * | |
| Spindle | Main motor power | Kw | 1 | * | * |
| Spindle speed | rpm | 50-3500 | * | * | |
| Spindle nose | ASA | A2-6 | * | * | |
| Spindle through hole | mm | Φ66 | * | * | |
| Tailstock | Maximum tailstock travel | mm | 400 | 650 | 900 |
| tailstock sleeve | Mohs | 5# | * | * | |
| Telescopic stroke of tailstock sleeve | mm | 140 | * | * | |
| Other | Knife Tower | / | 100(8T | * | * |
| Maximum turning diameter of cutter head | mm | 460 | * | * | |
| Shank size | mm | 25 x 25 | * | * | |
| Lubrication method | Automatic | 2L | * | * | |
| Cooling pump power | W | 550 | * | * | |
| External dimensions of machine tool | mm | 2520 × 1650 × 1900 | 2770 × 1650 × 1900 | 3020 × 1650 × 1900 | |
| Machine weight | T | 3.7 | 4.3 | 5 |

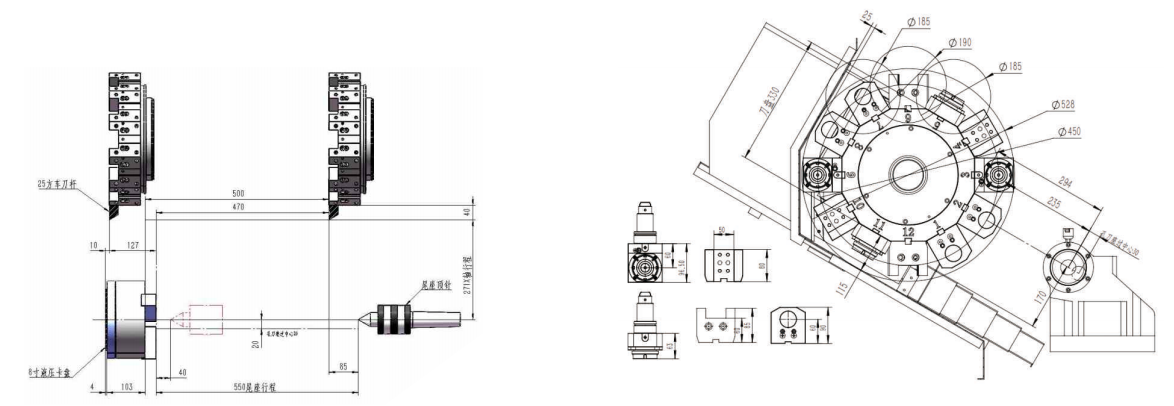

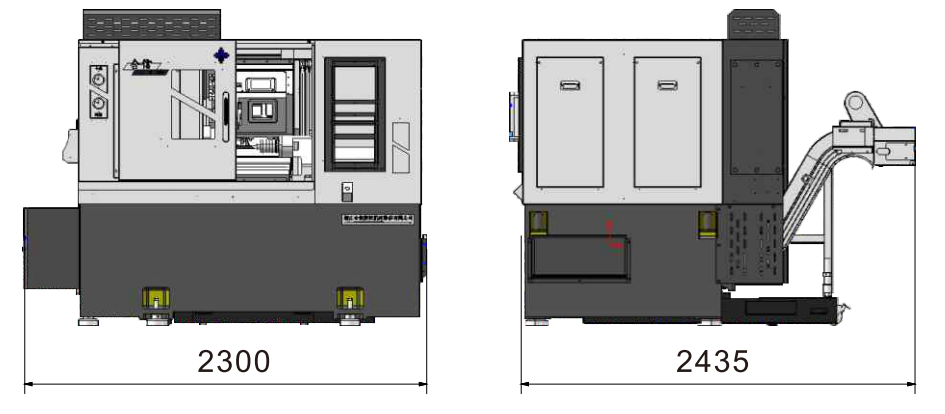

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

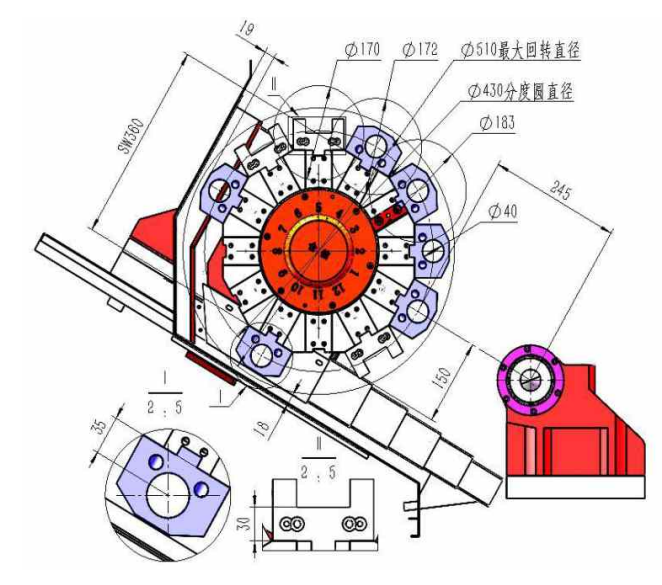

排刀干涉图 Interference diagram of row knife
