G-535
G-535 Oblique Bed Tool Tower Tailstock Line Rail CNC Lathe
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
|
Description |
Project |
Unit |
G-535 |
|
Scope of Work |
Maximum turning diameter of the bed |
mm |
Φ450 |
|
Maximum bar diameter over spindle |
mm |
Φ46 |
|
|
Feed |
X-axis fastest moving speed |
Mm/min |
22000 |
|
Z-axis fastest moving speed |
Mm/min |
22000 |
|
|
X-axis maximum travel |
mm |
180 |
|
|
Maximum Z-axis travel |
mm |
360 |
|
| X/Z axis repeat positioning accuracy | mm | 0.005 | |
|
Tailstock |
Maximum tailstock travel |
mm |
470 |
|
Two top distance |
mm |
360 |
|
|
Tailstock sleeve travel |
mm |
60 |
|
|
tailstock sleeve |
Mohs |
4# |
|
|
Spindle |
Spindle nose |
ASA |
A2-5 |
|
Spindle speed |
rpm |
50-4500 |
|
|
Spindle through hole |
mm |
Φ56 |
|
|
Main motor |
Kw |
Servo/frequency conversion 5.5 |
|
|
Chuck diameter |
mm |
6-8 inches |
|
|
Servo Hydraulic turret |
Maximum swing diameter |
mm |
Φ396 |
|
Center High |
mm |
80(8 stations) |
|
|
Other |
Bed structure form |
|
45 degree inclined bed |
|
Lubrication method |
|
automatic lubrication |
|
|
Cooling pump power |
W |
250 |
|
|
Lighting |
V |
220 |
|
|
System |
|
Optional |
|
|
Overall dimensions of machine tool (length×width×height) |
mm |
2148 × 1527 × 1757 |
|
|
Machine weight |
T |
2.4 |
Installation size

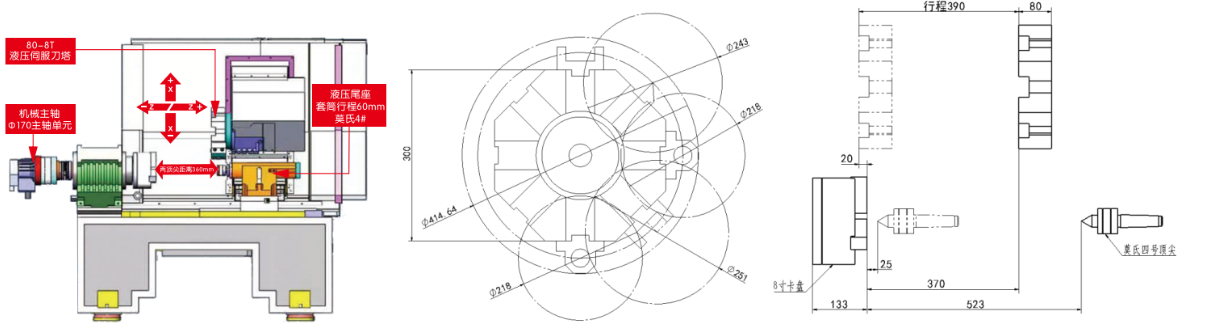

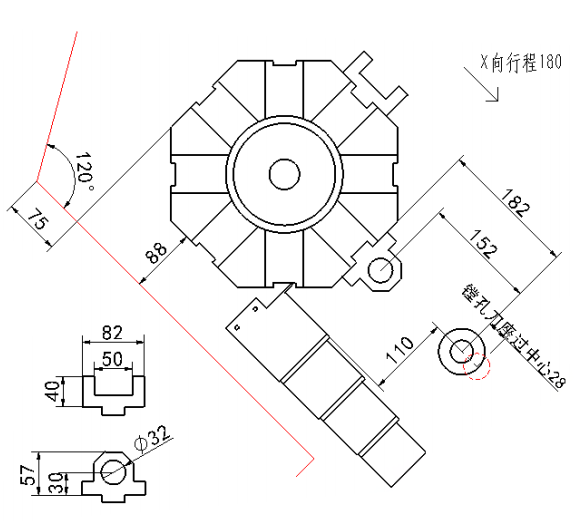

排刀干涉图 Interference diagram of row knife
