G-545 Oblique Bed Tool Tower Tailstock Line Rail CNC Lathe
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | G-545 | G-545-800 |
| Scope of Work | Maximum turning diameter of the bed | mm | Φ460 | * |
| Bars diameter of passing cylinder | mm | Φ46(Φ52) | Φ52 | |
| Feed | X-axis fastest moving speed | Mm/min | 22000 | * |
| Z-axis fastest moving speed | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 245 | * | |
| Maximum Z-axis travel | mm | 550 | 800 | |
| Maximum tailstock travel | mm | 480 | 730 | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | |
| Tailstock | Two top distance | mm | 550 | 800 |
| Overall moving tailstock (rail width) | mm | 35 | * | |
| tailstock sleeve | Mohs | 5# | * | |
| Spindle | Spindle nose | ASA | A2-5 (optional A2-6) | A2-6 |
| Spindle speed | rpm | 50-4500 | * | |
| Spindle through hole | mm | Φ56(Φ66) | Φ66 | |
| Main motor | Kw | Servo/variable frequency 7.5 (optional 11) | * | |
| Chuck diameter | mm | 6 inch (8 inch) | 8 inch | |
| servo hydraulic turret | Maximum swing diameter | mm | Φ480 | * |
| Center High | mm | 80(12 stations) | * | |
| Other | Bed structure form | 45 degree inclined bed | * | |
| Lubrication method | automatic lubrication | * | ||
| Cooling pump power | W | 250 | * | |
| Lighting | V | 220 | * | |
| System | Optional | * | ||
| Overall dimensions of machine tool (length×width×height) | mm | 2655 × 1851 × 1812 | 2932 × 1975 × 1867 | |
| Machine weight | T | 3.5 | 4 |

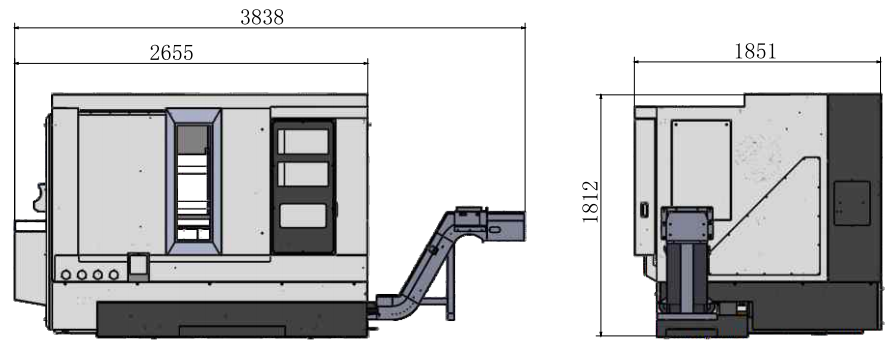

Installation size
Note: Inaccuracies may exist between the description, data and reality of all series of products in this catalog and are subject to change without notice.

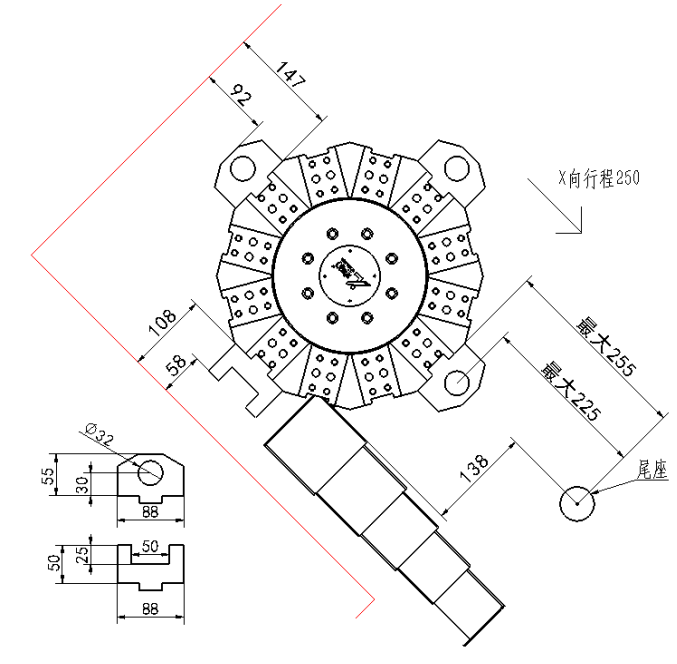

排刀干涉图 Interference diagram of row knife
