G-520
G-520 inclined bed rail CNC lathe
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | G-520A | G-520 |
| Scope of Work | Maximum turning diameter of the bed | mm | Φ520 | * |
| Maximum diameter of the bar on the carriage | mm | 52160 | * | |
| Bars diameter of passing cylinder | mm | Φ52 | Φ46 | |
| Feed | X-axis fast moving speed | Mm/min | 22000 | * |
| Z-axis fast moving speed | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 500 | * | |
| Maximum Z-axis travel | mm | 450 | * | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | |
| Spindle | Spindle nose | ASA | A2-6(200 spindle unit) | A2-5(170 spindle unit) |
| Spindle speed | rpm | 50-4500 | * | |
| Spindle through hole | mm | Φ66 | Φ56 | |
| Main motor | Kw | 5.5 Encoder-less Servo | * | |
| Chuck diameter | mm | 6 inch | * | |
| Other | Clamping mode | Hydraulic | * | |
| Tool holder mode | Row tool holder | * | ||
| Bed structure form | 45 degree inclined bed | Guest | ||
| Lubrication method | automatic lubrication | * | ||
| Cooling pump power | W | 250 | * | |
| Lighting | V | 220 | * | |
| System | Optional | * | ||
| Overall dimensions of machine tool (length×width×height) | mm | 2174 × 1620 × 1830 | * | |
| Machine weight | T | 2.4 | 2.3 |

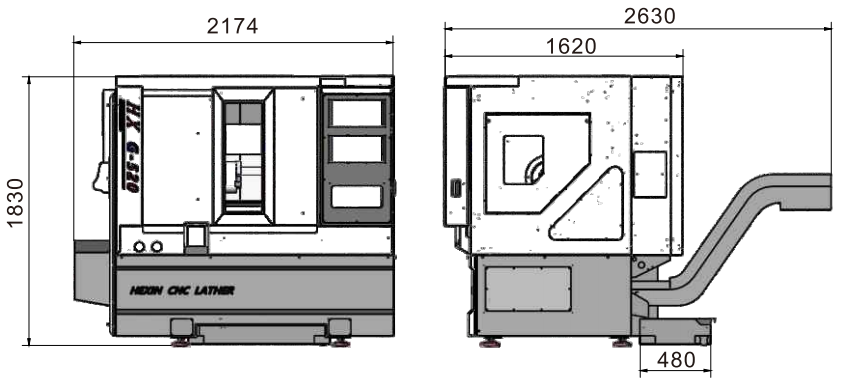

Installation size

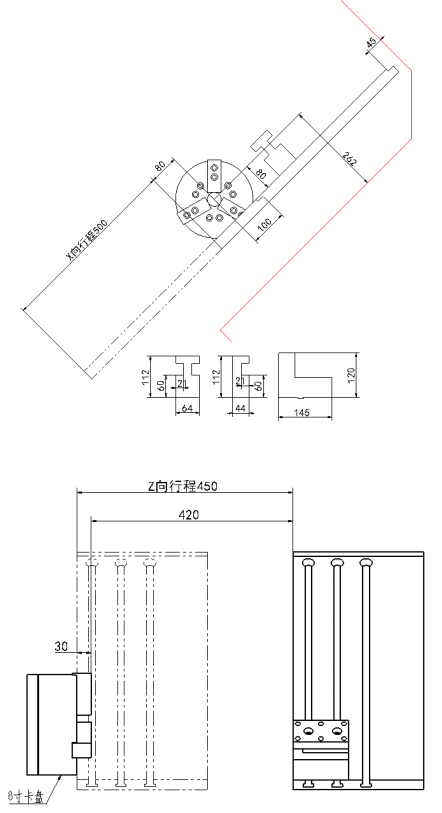

排刀干涉图 Interference diagram of row knife
