G-36
G-36 high and low rail (row knife) CNC machine tool
This product is suitable for shell, disc, shaft products machining
Technical parameters
Machine tool specifications
| Description | Project | Unit | G-36 | G-46 |
| Scope of Work | Maximum turning diameter of the bed | mm | Φ480 | * |
| Maximum diameter of the bar on the carriage | mm | 52160 | * | |
| Bars diameter of passing cylinder | mm | Φ36 | Φ46 | |
| Feed | X-axis fast moving speed | Mm/min | 22000 | * |
| Z-axis fast moving speed | Mm/min | 22000 | * | |
| X-axis maximum travel | mm | 400 | * | |
| Maximum Z-axis travel | mm | 400 | * | |
| Z/X axis track | 30/30 | * | ||
| Z-axis screw | 3210 | 32 | * | |
| X-axis screw | 2508 | 25 | * | |
| X/Z axis repeat positioning accuracy | mm | 0.005 | * | |
| Spindle | Spindle | ASA Homemade | A2-5 | * |
| Main motor | Kw | 5.5 without encoder | * | |
| spindle bearing | Front 2 Rear 2 (Homemade) | Front 3 back 2 (self-made) | ||
| Spindle unit | 150 (optional) | 170 (optional) | ||
| Spindle speed | rpm | 50-4000 | * | |
| Spindle through hole | mm | Φ50 | Φ50 | |
| Φ49 | Φ56 | |||
| Chuck | Chuck (optional) | * | ||
| Other | Bed structure form | High and low rail 30 degree inclined bed | * | |
| Clamping mode | Hydraulic | * | ||
| Tool holder mode | Row tool holder | * | ||
| Lubrication method | automatic lubrication | * | ||
| Cooling pump power | W | 120 | * | |
| Lighting | V | 220 | * | |
| System | Optional | * | ||
| Overall dimensions of machine tool (length×width×height) | mm | 1990 × 1500 × 1530 | * | |
| Machine weight | T | 1.82 | 1.9 |

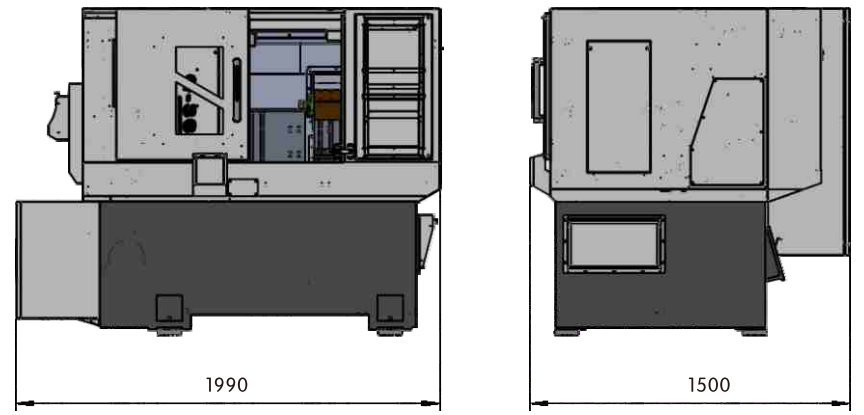

Installation size

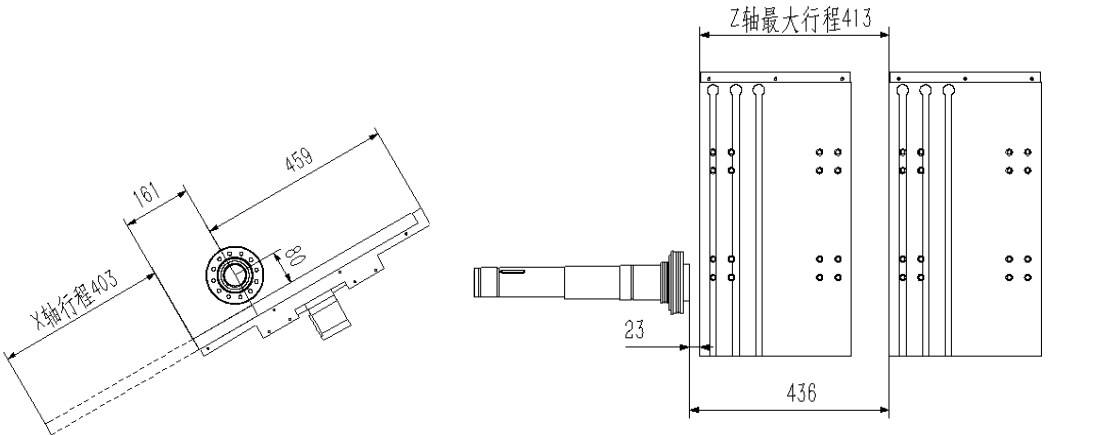

排刀干涉图 Interference diagram of row knife
